GSTARCAD 8

SPEED FOR YOUR DESIGN




WITH A NEW ENGINE, IT RUNS MUCH FASTER AND STABLER.




GSTARCAD8 IS A BRAND NEW CAD PLATFORM POWERED BY A COMPLETELY NEW ENGINE AND SEVERAL INNOVATIVE TECHNOLOGIES TO MAKE ITS GRAPHIC SPEED AND USER DESIGN EXPERIENCE FROM 3 TO 5 TIMES FASTER WHILE DRASTICALLY REDUCING GRAPHIC DATA AND MEMORY OCCUPANCY BY AROUND 40%-50% LESS THAN ANY OTHER CAD PRODUCT OF THE SAME CATEGORY.


GSTARCAD8 IS A BRAND NEW CAD PLATFORM DEVELOPED BY XI’AN GSTARSOFT LTD.,

 A WHOLLY-OWNED SUBSIDIARY OF GSTARSOFT

OVER 100 EXPERIENCED ENGINEERS AND TALENTED PROGRAMMERS HAVE SPENT 3 YEARS ON THE DEVELOPMENT OF THIS NEW PLATFORM. THEREFORE, GSTARCAD8 IS BASED ON THE KNOW-HOW ACCUMULATED BY GSTARSOFT IN THE DEVELOPMENT OF THE CAD PLATFORM IN THE PAST 10 YEARS, AS WELL AS IN-DEPTH RESEARCH ON OVER 10,000 REQUIREMENTS FROM GSTARCAD PARTNERS AND CLIENTS WORLDWIDE AND THE FUTURE TREND OF THE CAD MARKET.



WHAT’S MORE, THIS PLATFORM OFFERS A NEW INTERNAL STRUCTURE THAT GIVES BIG ROOM FOR FURTHER PERFORMANCE IMPROVEMENT.

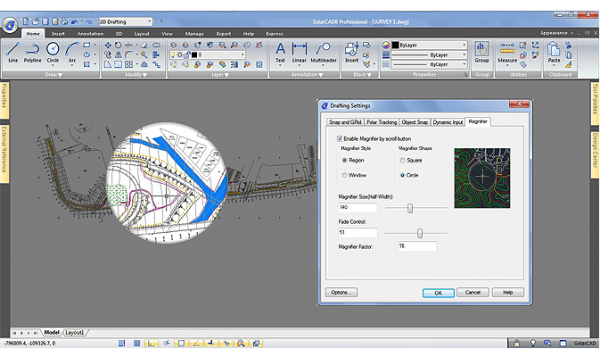

MAGNIFIER


Magnifier is an innovative tool that helps to view drawing details or snap points without performing the traditional zoom in/out, pan, or even regen commands on big drawings and is easy to use and customize.

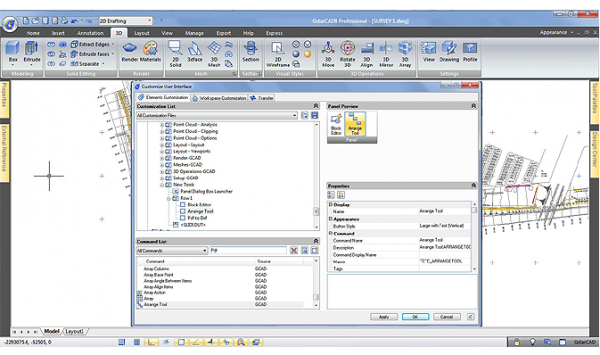

DRAG AND DROP CUI


Drag and drop customization is an innovative way to quickly customize the user interface environment by dragging and placing any command you need to any panel or ribbon tab.

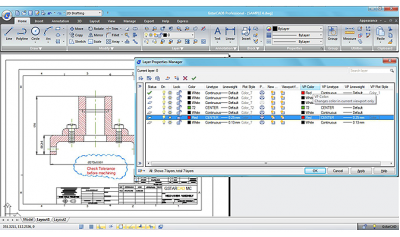

LAYOUT VIEWPORT


Users can set different layer colors, line types, line weights, plot styles within a viewport at layout space.

The layer changes only will be displayed at layout space but not at model space.

Layout viewports make layer modifications super flexible when plotting a drawing.


HATCH COLOR


Apply color and background to your hatch pattern or solid fills to get a more realistic representation of your drawing.


MAGNIFIER


Magnifier is an innovative tool that helps to view drawing details or snap points without performing the traditional zoom in/out, pan, or even regen commands on big drawings and is easy to use and customize.

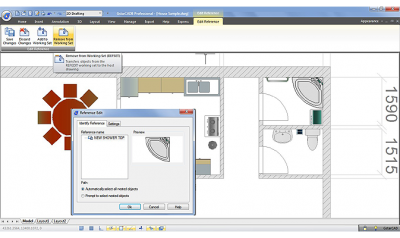

EDIT REFERENCE TAB


Users can quickly select an edit reference option from its ribbon tab like save and discharge changes, add or remove from working set when editing a block as a reference by executing the command REFEDIT.

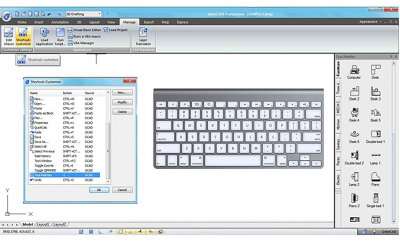

SHORTCUTS CUSTOMIZE


Shortcuts customize provides a faster way to invoke a command and customize its shortcut. In addition, the CUSTACC command allows you to customize, delete or modify existing command shortcuts.

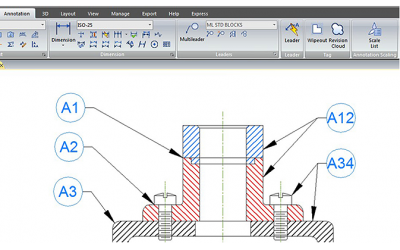

MULTILEADERS


Multileader is an annotative function and is used to attach annotation to multiple leader lines. In addition, Multileader gives additional information or special instruction in a point or specific area on your drawing.


ANNOTATION SCALING


GstarCAD has added annotative scale and some related settings to objects, spaces, and viewports. The annotative object, such as text, dimension, block, or hatch, could automatically adjust its size when changing the annotative scales in spaces and viewports. As a result, users could arrange and plot drawings for different scales in a faster way.


FIELD WITH OBJECT


GstarCAD has complemented the field command with the object option. Users could make the object attribute or formula as the content of a field. Users could select one of the properties as the content of a field, such as a hatch area; the field will automatically update when the hatch boundary changes.

DOWNLOAD LATEST PATCHED GSTARCAD 2013/14 (8)

SMALL INSTALLER, FAST STARTUP, COMMERCIAL USE.

DISCOVER GSTARCAD 2023

REMARKABLE PERFORMANCE AND COMPATIBILITY

REDEFINE GSTARCAD CAD PLATFORM, IT'S NON-OPEN SOURCES PLATFORM!
