GSTARCAD
2026


Fresh Look, Smarter Design, Faster Speed Powered by Core.



DOWNLOAD GSTARCAD 2026




GstarCAD 2026 features a completely redesigned interface that provides a sleek, modern look to enhance the user experience.

Performance improvements across various tasks significantly boost efficiency. Notable new features include Dimensional Constraints, Parameters Manager, DWG Compare, and innovative tools such as Drawing Merge and View Mode Switch

Additionally, updates to DIMCORD, Batch Plot, Batch Purge, and PDF Import further enhance usability. Let's take a closer look at these exciting updates!

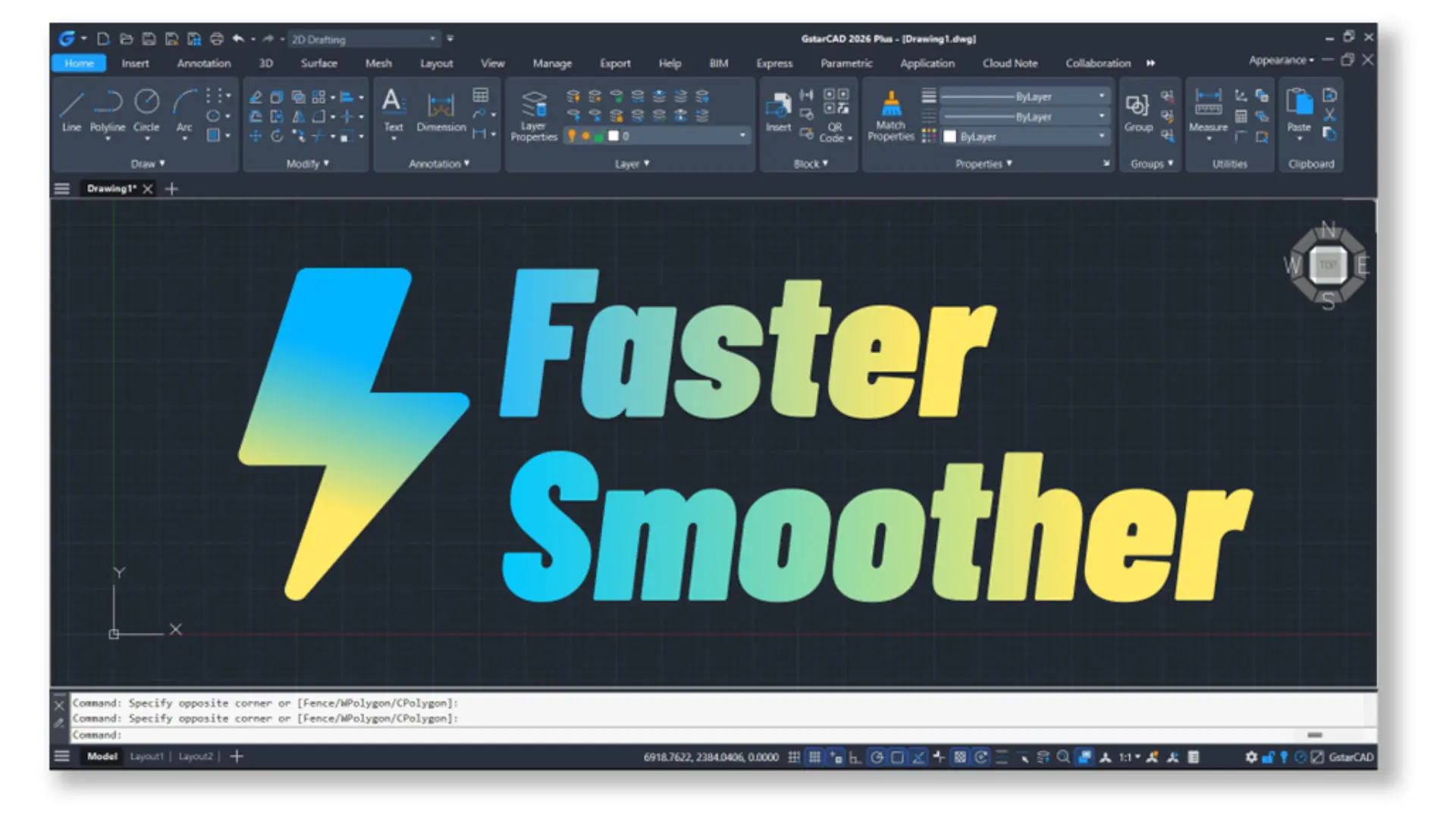

Performance

Boosted Performance to elevate your design experience to new heights.

Performance

GstarCAD 2026 signifies a substantial advancement in performance over its 2025 predecessor, guaranteeing an expedited, more fluid, and enhanced design experience for users.

Drawing opening speed improved by over 40% on average

Common operations improved by over 20% (REGEN, MOVE, COPYCLIP, MIRROR, UNDO, REDO, etc.)




In addition to these overall gains, key performance enhancements are listed below:

Feature/Operation Performance Gain vs. GstarCAD 2025
Multi-reference drawing opening (without clipping) Previously lag-prone drawings now open in under 1 minute
EXTEND (Fence/Crossing) 11× faster
TRIM (Fence/Crossing) 2× faster
Clipped blocks & Xrefs 2.9× faster opening
4.2× faster layout switching
Block editing preview (BEDIT/REFEDIT/INSERT) 7× faster
MIRROR operation 1.4× faster
Block creation/explosion 5× faster block creation with high-coordinate entities
5× faster explosion of inserted blocks
Freeze eliminated for multileader-heavy blocks
Hatch (pick-point on complex drawings) 30× faster


Improvements

Enhanced functionalities to optimize the design experience.

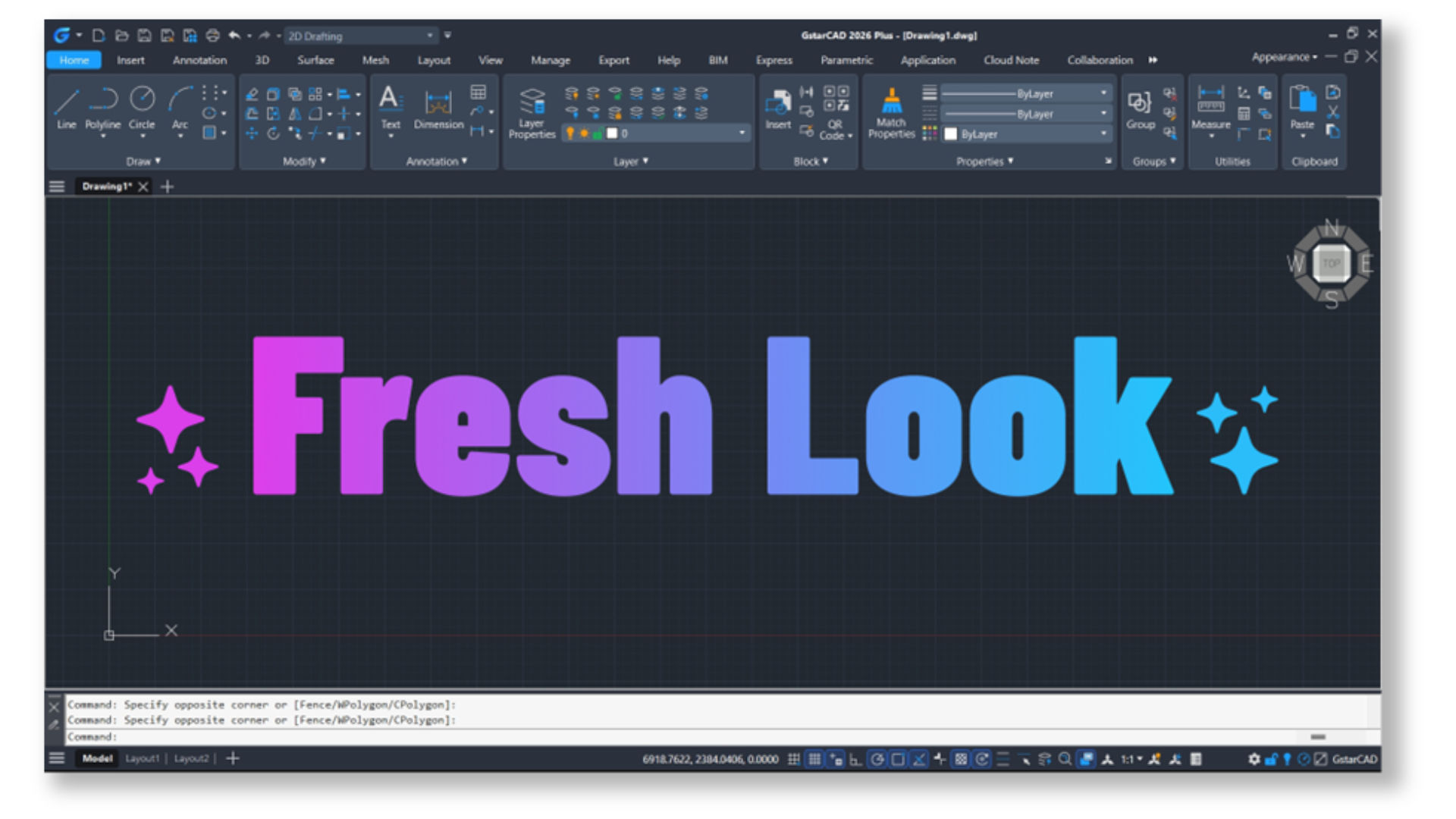

Interface Reconstruction - IMPROVEMENTS

The GstarCAD interface has been meticulously redesigned utilizing the WPF framework along with our proprietary technologies, thereby enhancing both its visual sophistication and technical robustness.

Visual Refresh:

``The color schemes and proportions have been thoroughly redesigned, featuring over 1,500 icons meticulously redrawn in SVG format to ensure precise and smooth display across all scales. Additionally, the refined theme colors and display effects contribute to a sophisticated and contemporary aesthetic.

Technical Upgrade::

The system is built upon a new WPF architecture that features optimized secondary development interfaces and enhanced data handling capabilities. Furthermore, its full compatibility with ACAD libraries ensures a seamless and zero-cost migration for existing  .NET-based workflows.

Usability Optimization:

The Recent Documents feature now presents icons alongside names, accommodating up to 50 entries. Subpanels are now capable of being pinned, and ribbon tabs and panels can be swiftly customized through a right-click option. Furthermore, the text editor has been integrated within the ribbon to optimize screen space, complemented by several other enhancements to the user interface.

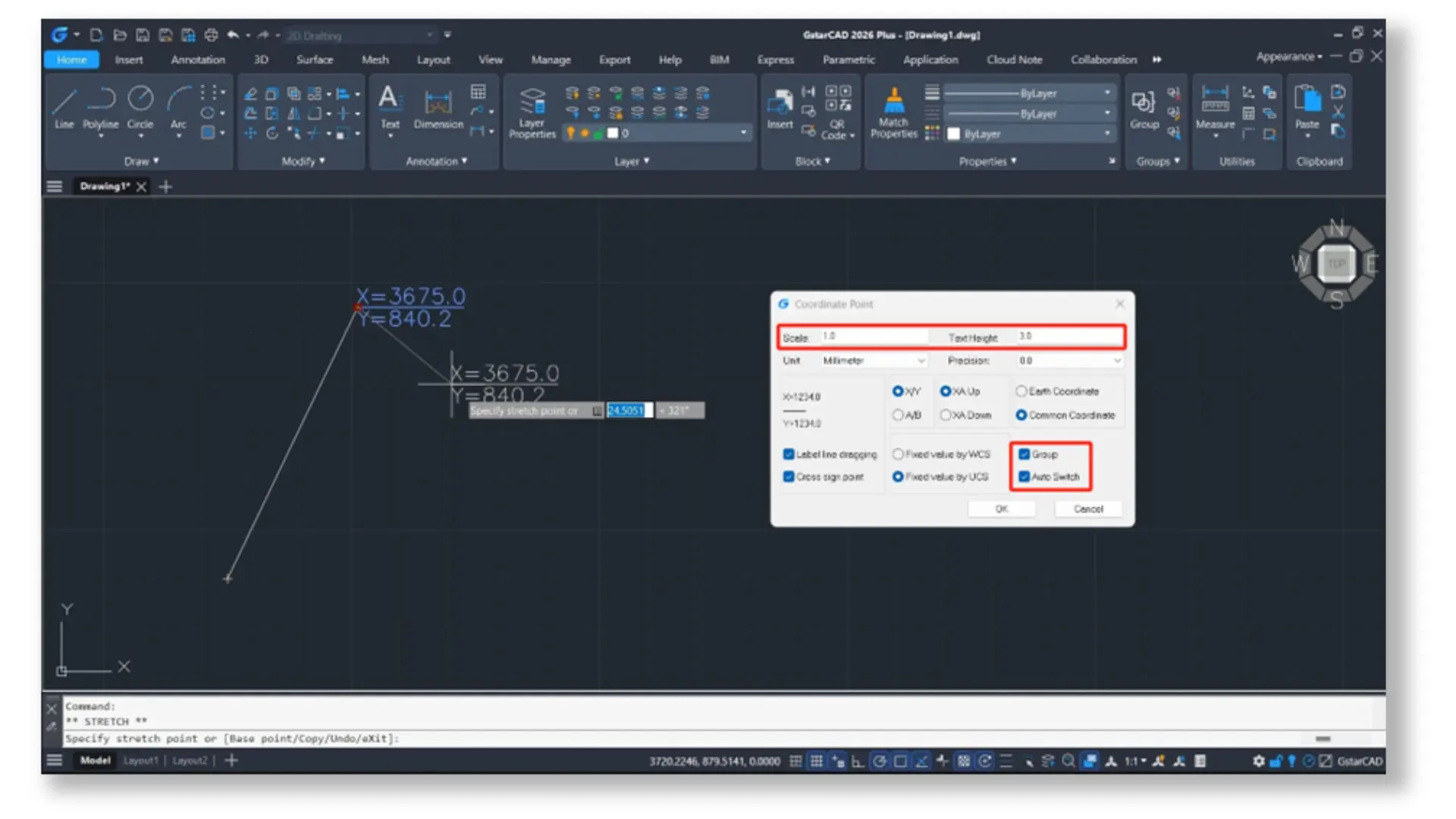

DIMCORD

The DIMCORD command has been enhanced to incorporate leader lines in place of polylines. This enhancement allows for the automatic movement of leader lines together with their corresponding text blocks, facilitating a more intuitive process for label placement. Furthermore, the revised "Parameters" dialog enables users to adjust scale and text height, and it introduces new Group and Auto Switch options, thereby offering increased flexibility and ease of use.


Data Extraction

GstarCAD 2026 now provides the functionality to save extraction settings in .GXE files, allowing users to reuse them as templates. Furthermore, users have the capability to edit .GXE files to add or remove drawings, objects, or properties as needed. Any tables linked to the corresponding .GXE file will reflect updates made to those files when the tables are refreshed.

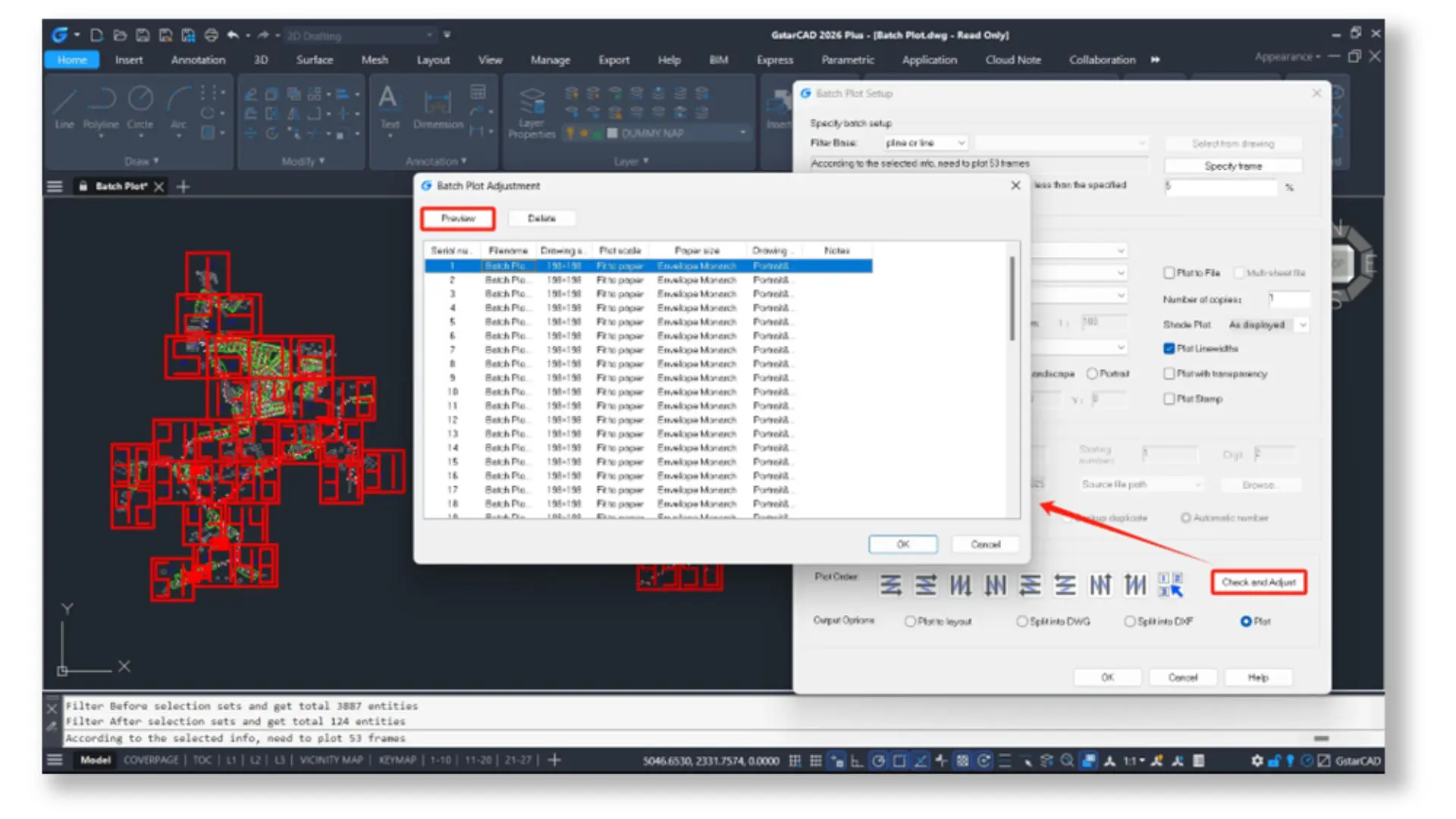

Batch Plot

Frame records can now be previewed in a sequential manner. Selecting any record will initiate the preview, while pressing the spacebar will advance through the frames, with the currently active frame highlighted for ease of reference.

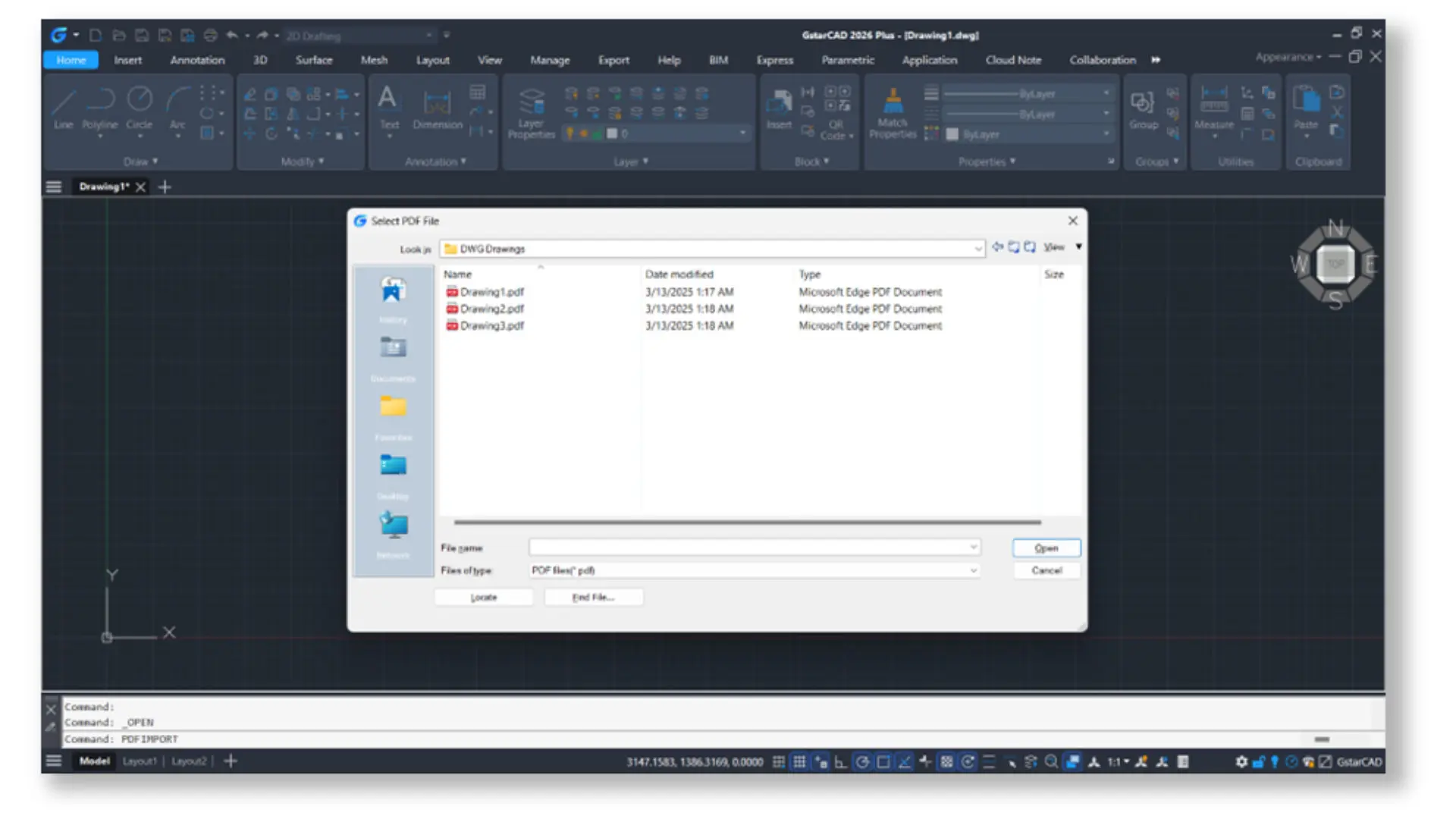

PDF Import

The PDF import engine has been enhanced through the integration of the modern and actively maintained PDFium library. This upgrade substantially increases import speed and improves the rendering of raster images, yielding better transparency, clarity, and color accuracy. Furthermore, advancements in text recognition and decoding allow for same-line text to be identified as MText, with each character receiving a width factor determined by the first character. Additionally, the upgrade provides clearer hatch displays.

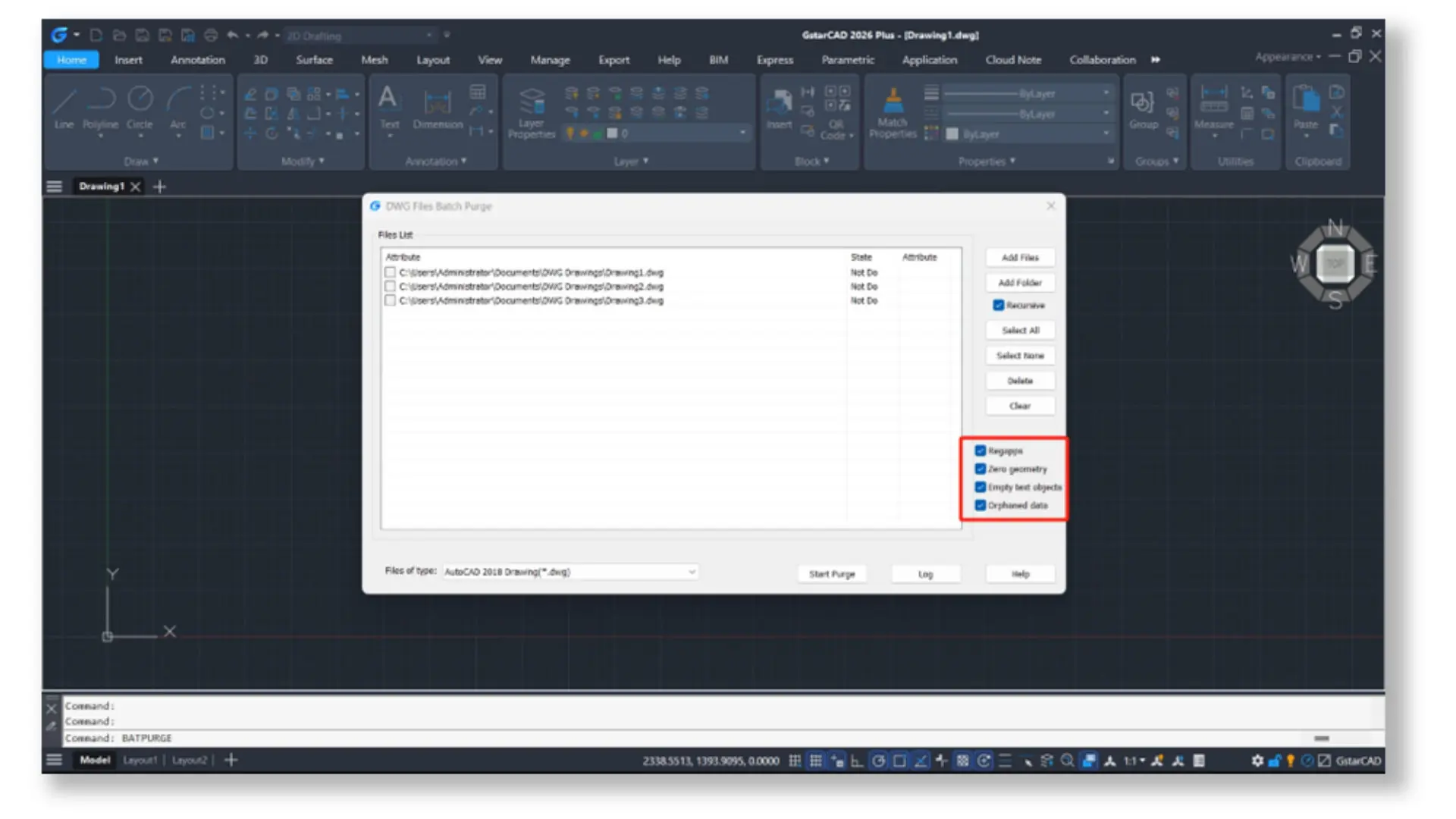

Batch Purge​

 The Batch Purge tool now provides enhanced capabilities for the removal of registered applications, zero-length geometries, empty text objects, and orphaned drawing data.



New Features

Discover our powerful new features that will transform your design experience and unleash your creative potential. Don't miss out on the opportunity to elevate your projects to new heights!

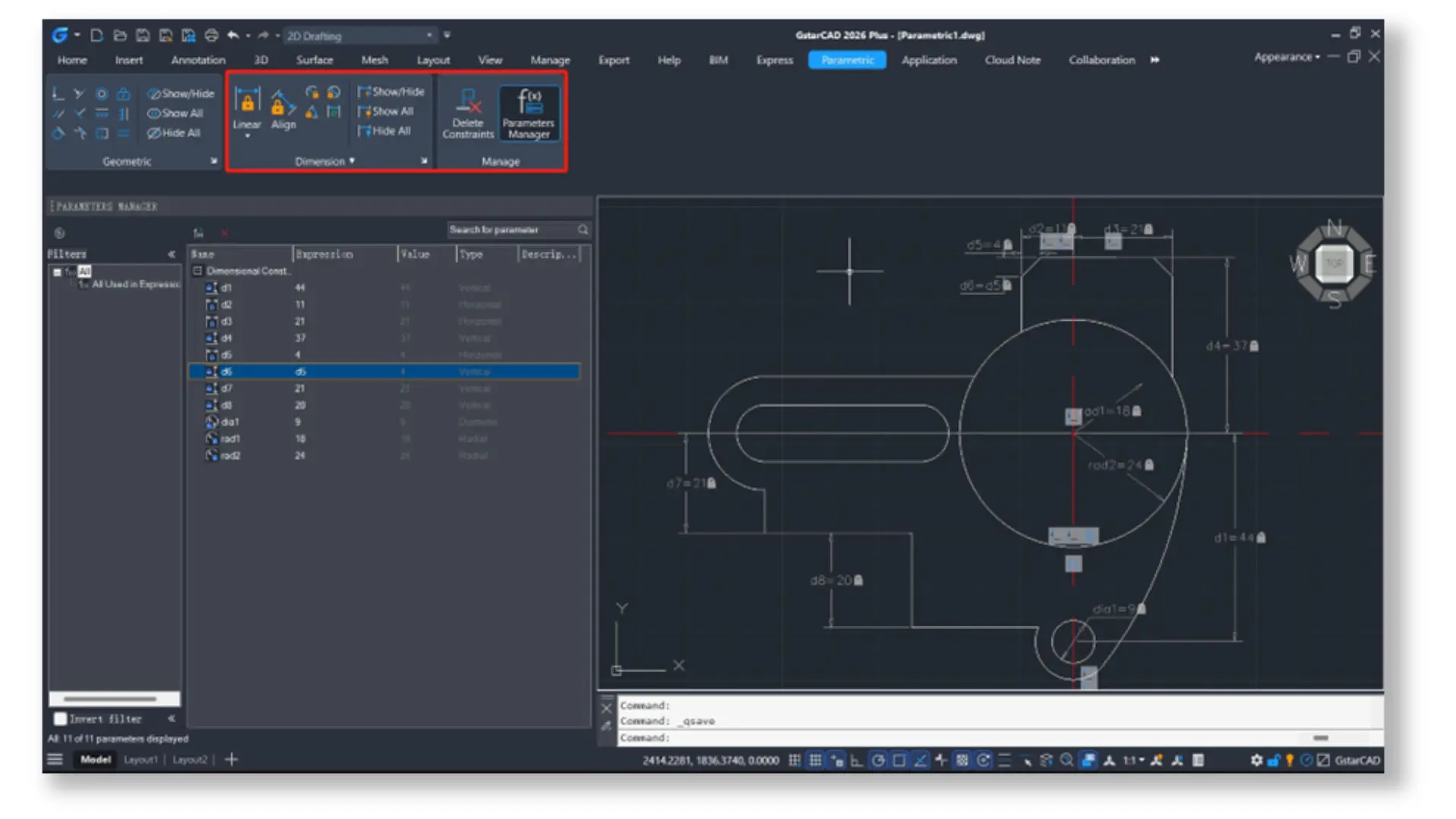

Parametric Constraints (Phase 2)​

Parametric Constraints were initially introduced in GstarCAD 2025, featuring support for Geometric Constraints. The subsequent release of GstarCAD 2026 significantly enhances this capability by incorporating Dimensional Constraints and a Parameters Manager. These advancements facilitate precise control over the dimensions and proportions of objects. Furthermore, they offer robust tools for the creation, modification, and organization of dimensional constraint parameters, reference parameters, and user-defined variables, thereby providing increased flexibility in design processes.

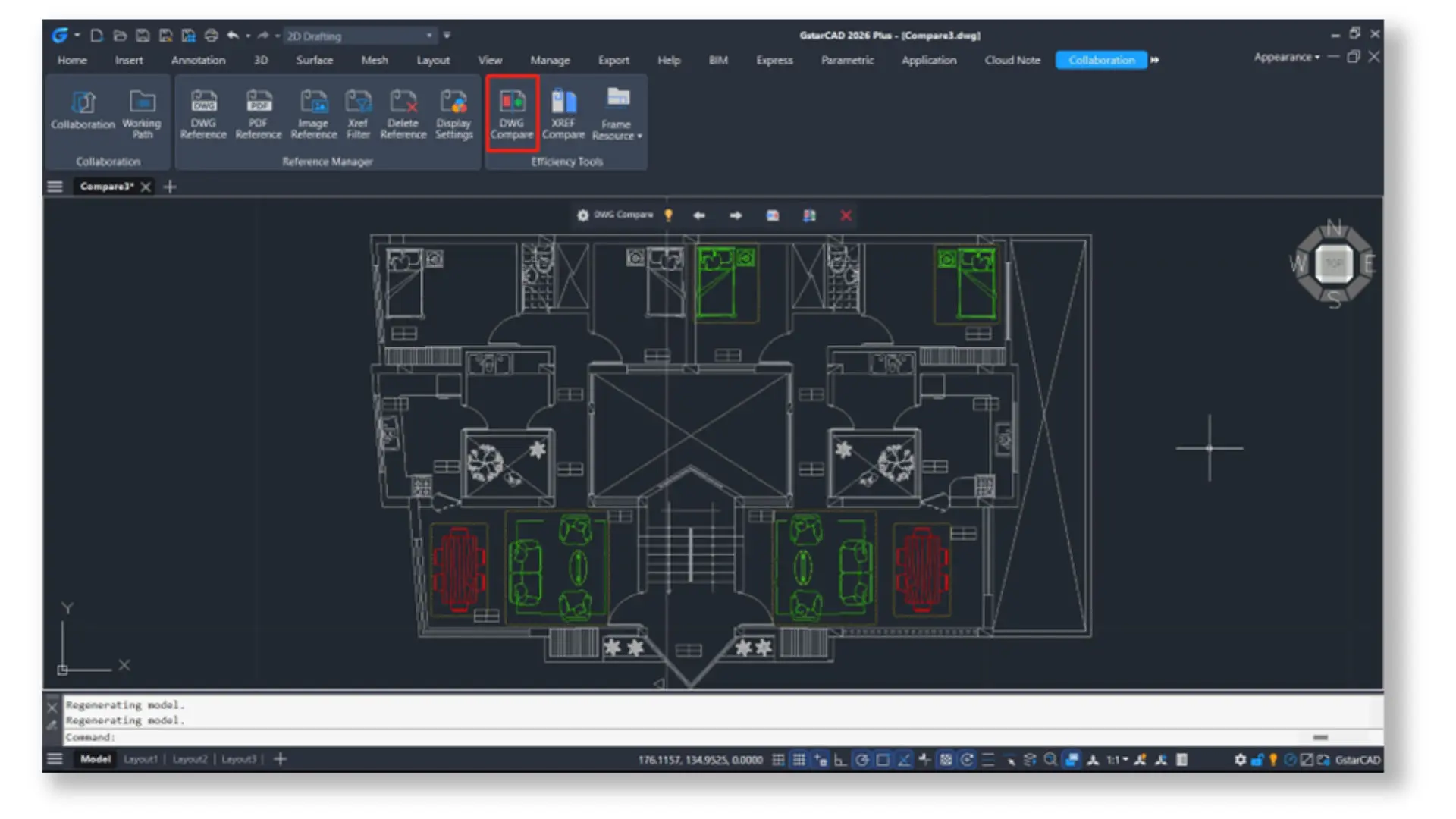

DWG Compare

 This feature facilitates the comparison of a designated drawing with the current drawing by employing revision clouds to emphasise the differences. It enables users to customise the comparison settings, import objects from the drawing being compared, and export as well as bind the findings into new snapshot drawings for future reference.


3D Modeling Workspace​

The introduction of a dedicated "3D Modeling" interface complements the existing GstarCAD Classic and 2D Drafting workspaces. This specialized interface exclusively features 3D-related toolbars, menus, and palettes, thereby concealing unnecessary user interface elements to optimize the available modeling screen space.


TIFF Version 6

(CCITT G4 2D Compression)

Plotter Support

This plotter is designed to provide black-and-white output, significantly reducing the size of drawing files while ensuring the accuracy of lines, text, and dimensions is preserved.


Tool Palette:

XTP File Import​

Tool palettes can now be customized through the importation of XTP files, allowing for the integration of text, separators, and block references from ACAD configuration sets. This advancement enhances workflow efficiency and promotes consistency across projects.

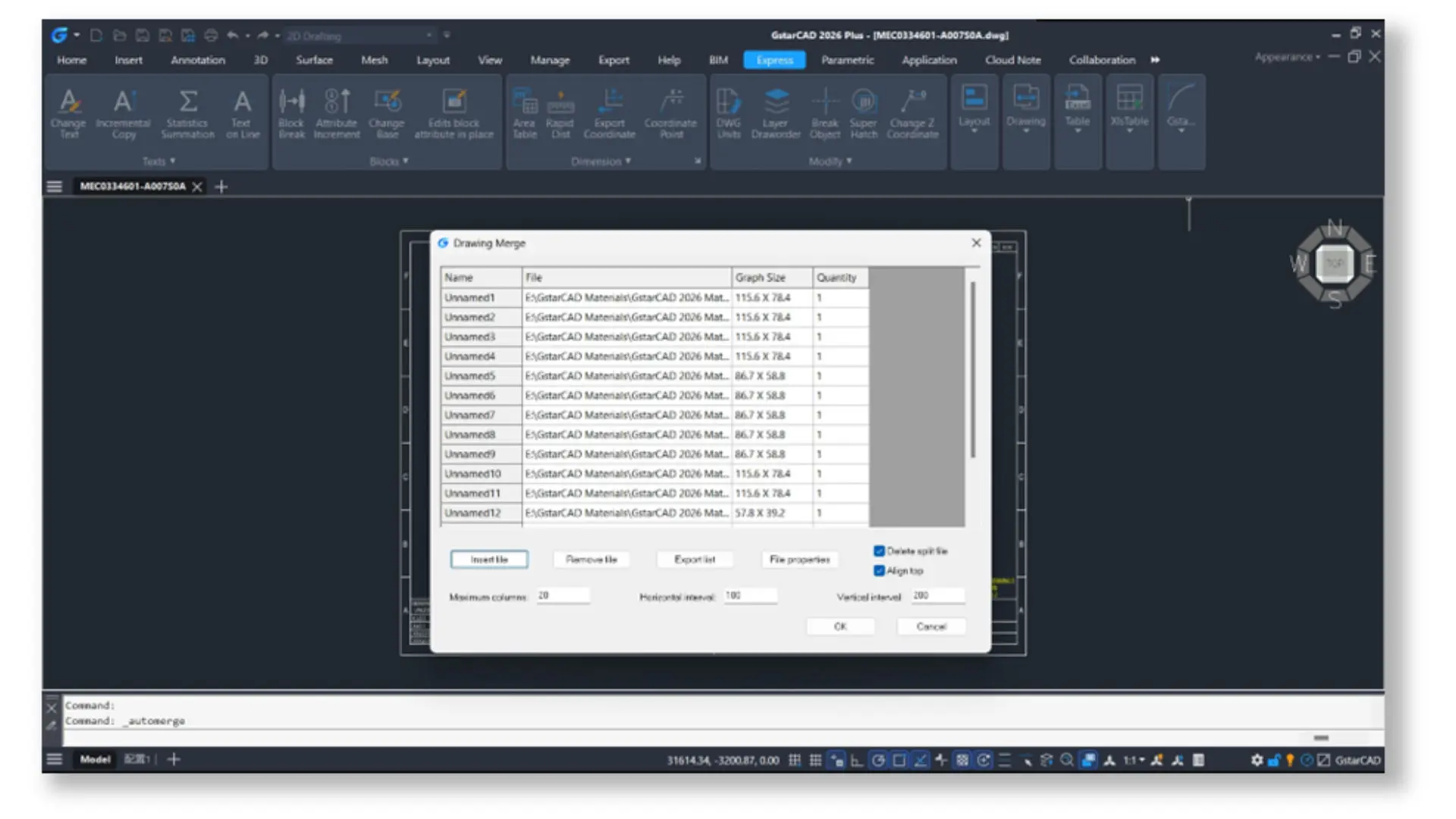

Drawing Merge ​

The Drawing Merge feature facilitates batch analysis, as well as the splitting and merging of drawings through the use of Xrefs, while offering customizable layout settings. This feature further enhances workflow by enabling users to view entity properties and export the drawing list to a .lst file, thereby improving project organization.

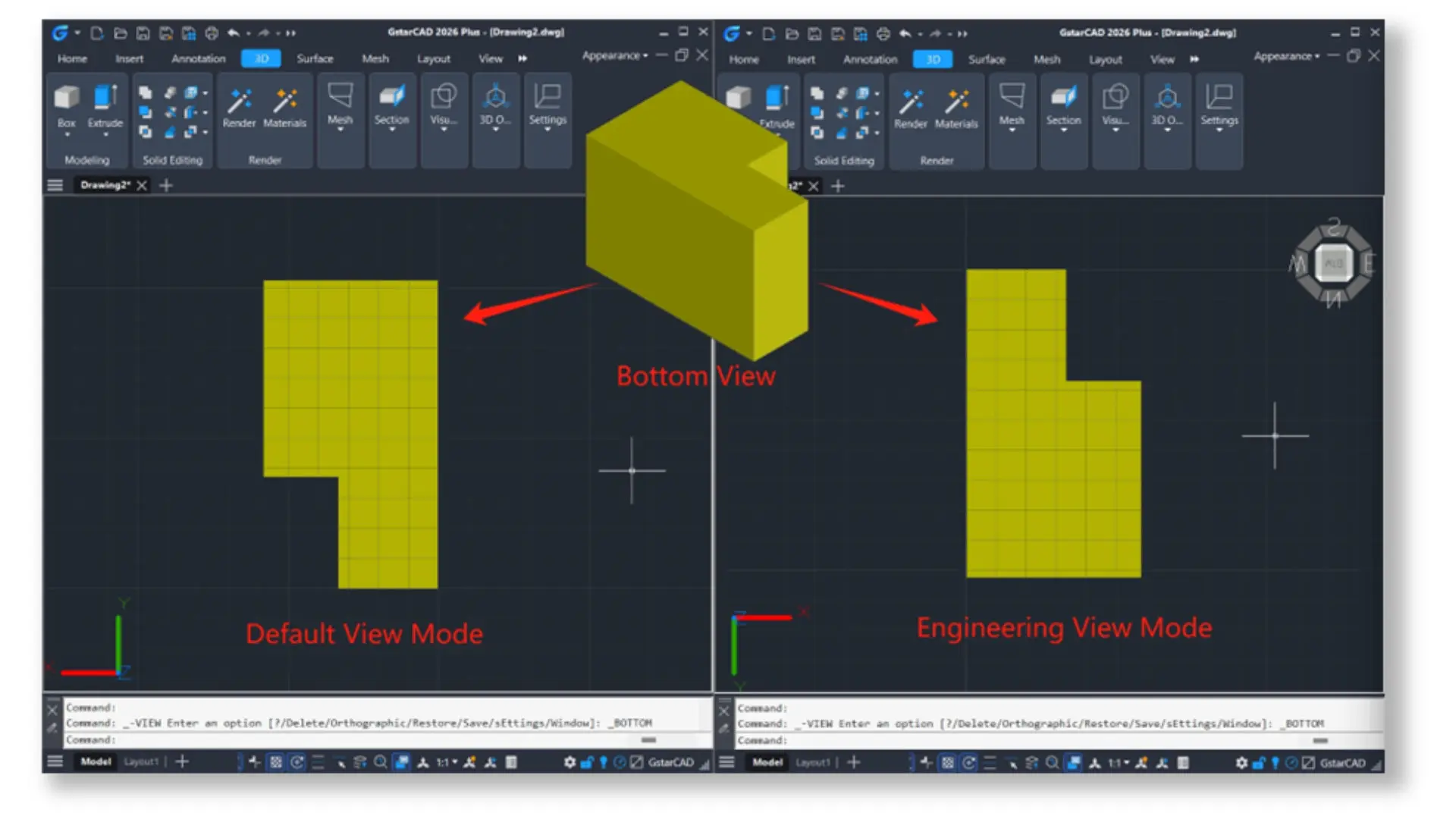

Engineering Projection​

The ENGINEERINGVIEWMODE variable facilitates the transition from the default bottom view in ACAD to a true engineering projection. This adjustment significantly enhances the visual accuracy of technical drawings, thereby improving overall precision in engineering documentation.


GstarCAD for Mac


Leveraging the technical innovation and practical experience of Apple’s M series chip architecture and macOS system, GSTARCAD has successfully completed a comprehensive code migration, unlocking the full computing potential of Apple computers.

The interface interaction remains consistent with the Windows version, while performance has made a significant leap, achieving a native level of optimization.

Additionally, it is thoroughly adapted to the unique Apple user experience. This enhancement allows for the precise capture of design inspirations with extremely fast operations, fostering innovation and improving efficiency in the design process.​


Compatible to: Apple silicon M-series, arm64





You can download the latest GstarCAD 2026 right here. Enjoy a 30-day trial, no license key needed. Happy exploring!


DOWNLOAD




UPGRADE FROM THE PREVIOUS VERSION OF GSTARCAD?


If you have purchased a  GSTARCAD 2025 new license from us, you may be entitled to a free upgrade to GSTARCAD 2026.


Please log in to the GstarCAD license portal to check the upgrade status. If the product name displayed is GstarCAD 2026, your license key is ready to be upgraded.

GstarCAD license portal


Download the GstarCAD 2026 and install it on the same machine with an existing activation license.


If you have any inquiries, please contact us or submit a support ticket for customer service.

Upgrade your outdated version of GstarCAD to the cutting-edge 2026 release!


GET-A-QUOTE (GC2026 UPG)





GSTARCAD 365 : App, Web, Cloud

Design Anywhere,

Collaborate Everywhere

GstarCAD 365 is a comprehensive, multi-platform tool specifically designed to enhance team efficiency in areas such as drawing review, project management, communication, and collaborative design. Organisations have the option to select between Public Cloud and Private Cloud deployment based on their requirements.
